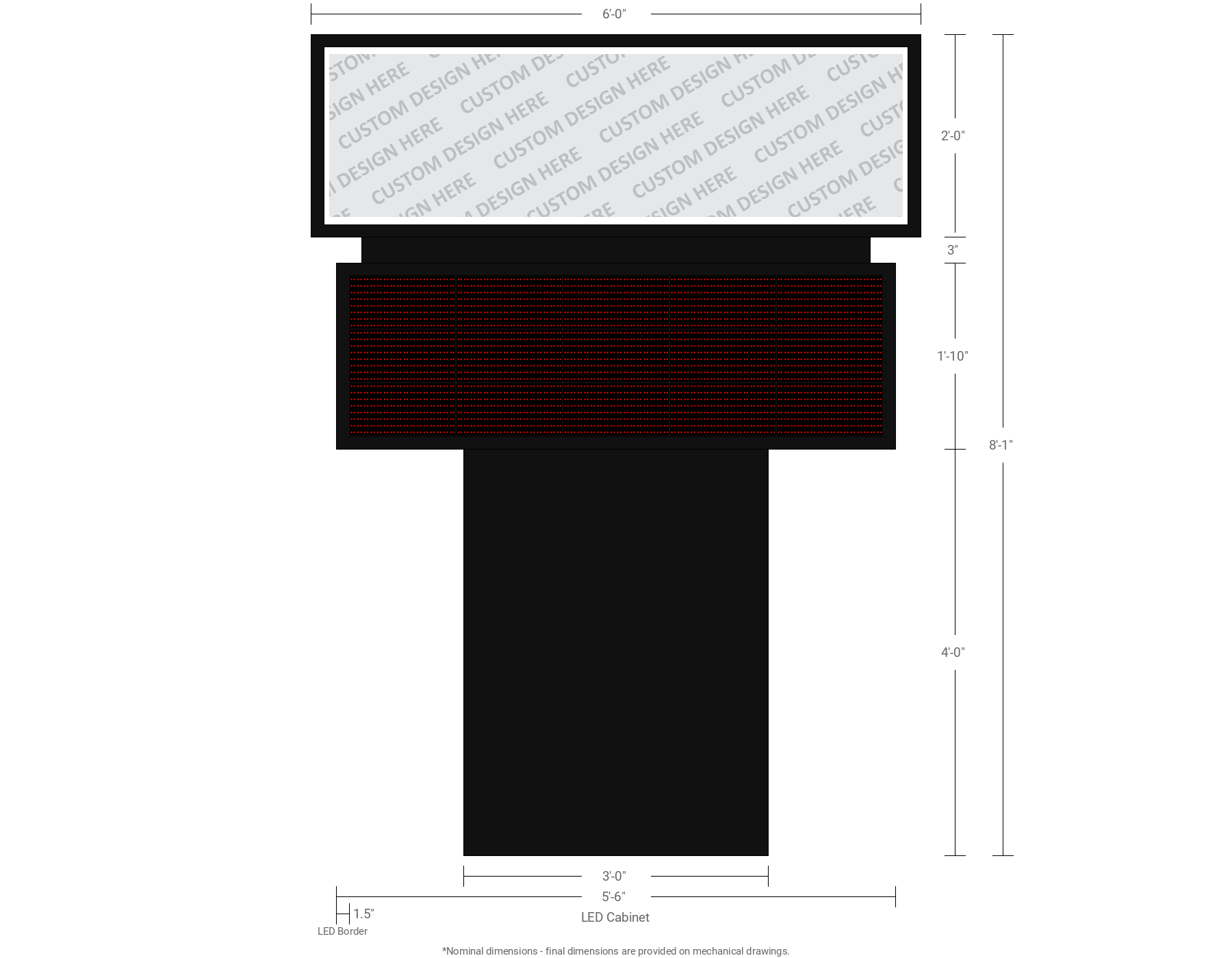

Complete Polaris 20mm 24x80 Double Sided Grayscale Red LED Display with 2' x 6' ID Cabinet & Digital Print Pan Formed Faces

Shown here with optional and customizable double thru pole with pole cover.
Multiple cabinet colors are available.
Product Endorsements

LED Display

LED Display Specifications
Color: Grayscale Red
Pixel Pitch: 20mm (0.79")
Matrix - pixel height: 24
Matrix - pixel width: 80
Sides: Double Sided
Controller: Industrial PC
Total pixels: 3,840
Total LEDs: 7,680
Brightness: Up to 10,000 nits
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 30
Auto or manual dimming: Included
LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 1'-7" (19")
Active display width: 5'-3" (63")
Active display sq.ft.: 8.3 sq.ft. per side
LED Display Electrical Use (Estimated)
Typical use (daytime): 88 watts per side
Typical use (nighttime): 18 watts per side
Maximum use: 177 watts per side
Max draw: 2 amps per side
Operating cost is approximately $5 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 8 x 16 pixels
Physical size: 160mm x 320mm
LEDs per pixel: 2 red per pixel
Text Capabilities
3 rows of 5.5" text
2 rows of 7.1" text
2 rows of 7.9" text
1 row of 10.2" text
1 row of 18.9" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV

ID Cabinet & Faces

Cabinet Specifications
All-aluminum extrusion
Double-sided application
Mitered and weld-reinforced corners
Available in several colors
Available with LED or fluorescent illumination, or non-illuminated.
Cabinet Dimensions
Cabinet Height: 24"
Cabinet Width: 72"
Cabinet Depth: 12"
Face Specifications
Two Pan Formed Sign Faces
Digitally printed graphics
TUFFAK® SL Sign Grade Polycarbonate
.118" material thickness
12,500psi compressive strength
High velocity hurricane zone classified
Face Dimensions
Face Height: 23.25"
Face Width: 71.75"
Face Sq. Ft.: 11.6 sq.ft.
Pan Depth: 1.5"
Flange Size: 1.5"

Mounting & Electrical

Shown here with standard options. Different installation methods and custom dimensions are available.

Mounting Specifications
Type: Double Thru Pole with Pole Cover
Mounting Dimensions
Height: 48"
Width: 36"
Electrical Requirements (Estimated)
Circuit: 1 circuit at 20 amps
Voltage: 120 volts
