Aurora 10mm 192x160 Single Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 10mm (0.39")
Matrix - pixel height: 192
Matrix - pixel width: 160
Sides: Single Sided
Controller: Industrial PC
Total pixels: 30,720
Total LEDs: 92,160
Brightness: Up to 10,000 nits
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included

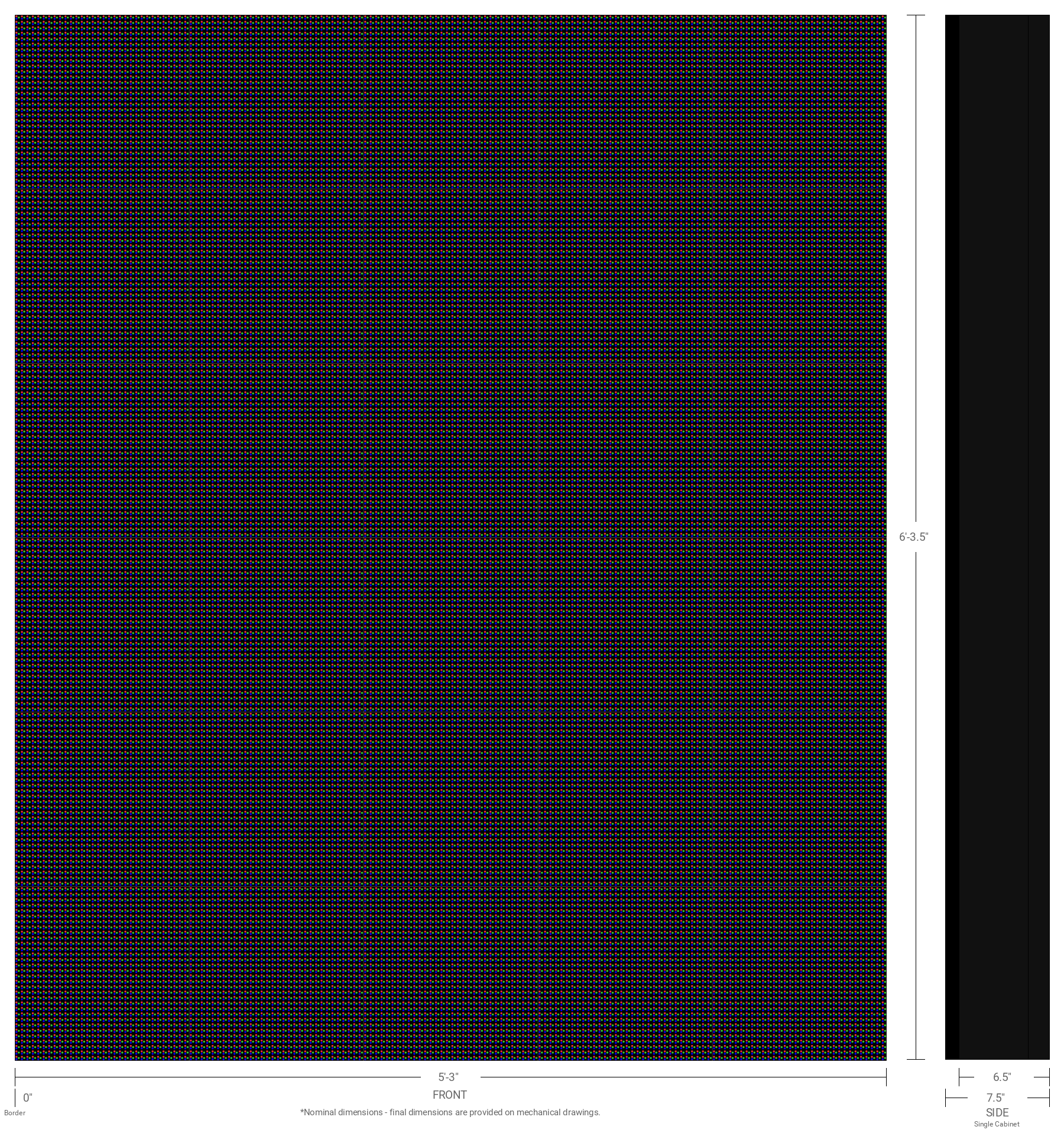

LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 6'-3.5" (75.5")
Active display width: 5'-3" (63")
Active display sq.ft.: 33 sq.ft.
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Aurora 10mm 192x160 Single Sided Full Color LED Display with 3' x 6' ID Cabinet & Digital Print Pan Formed Face
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 6' Single Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements (Estimated)
Circuit: 1 circuit at 20 amps
Voltage: 120 volts
LED Display Electrical Use (Estimated)
Typical use (daytime): 528 watts
Typical use (nighttime): 106 watts
Maximum use: 1,057 watts
Max draw: 9 amps
Operating cost is approximately $28 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 32 x 32 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 red, 1 green, 1 blue
Text Capabilities
24 rows of 2.8" text
19 rows of 3.5" text
17 rows of 3.9" text
12 rows of 5.1" text
11 rows of 6.9" text *
10 rows of 7.6" text *
9 rows of 8.4" text *
8 rows of 9.4" text *
7 rows of 10.8" text *
6 rows of 12.6" text *
5 rows of 15.1" text *
4 rows of 18.9" text *
3 rows of 25.2" text *
2 rows of 37.8" text *
1 row of 75.6" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV
