Aurora 10mm 256x352 Single Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 10mm (0.39")
Matrix - pixel height: 256
Matrix - pixel width: 352
Sides: Single Sided
Controller: Industrial PC
Total pixels: 90,112
Total LEDs: 270,336
Brightness: > 10,000 nits
Number of colors: 281 quintillion
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included

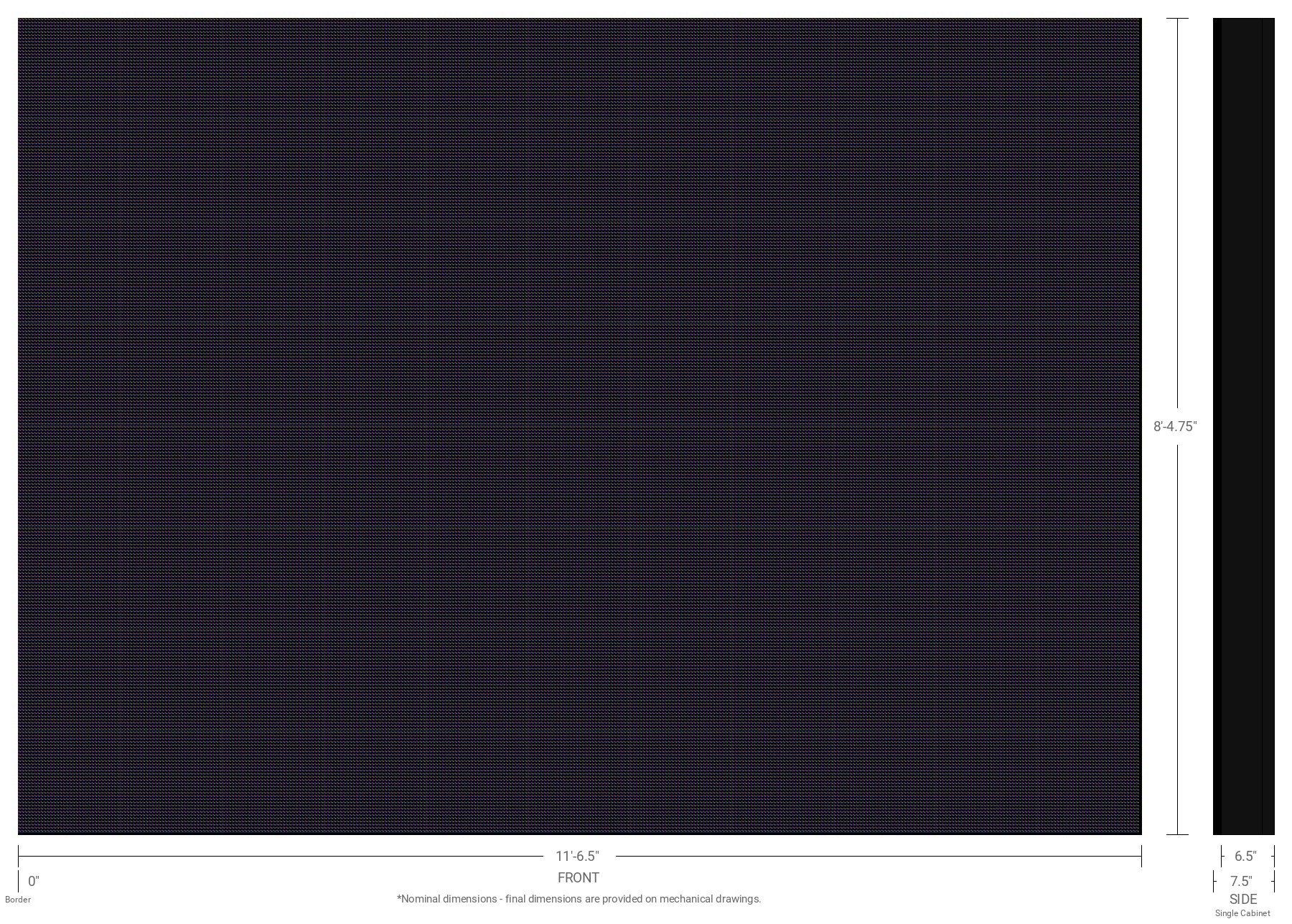

LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 8'-4.75" (100.75")
Active display width: 11'-6.5" (138.5")
Active display sq.ft.: 96.9 sq.ft.
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Aurora 10mm 256x352 Single Sided Full Color LED Display with 3' x 12' ID Cabinet & Digital Print Pan Formed Face
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 12' Single Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements
Circuit: 1 circuit at 20 amps
Voltage: 240 volts
LED Display Electrical Use
Typical use (daytime): 1,449 watts
Typical use (nighttime): 290 watts
Maximum use: 2,898 watts
Max draw: 12 amps
Operating cost is approximately $76 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 32 x 32 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 red, 1 green, 1 blue
Text Capabilities
32 rows of 2.8" text
25 rows of 3.5" text
23 rows of 3.9" text
16 rows of 5.1" text
15 rows of 6.7" text *
14 rows of 7.2" text *
13 rows of 7.8" text *
12 rows of 8.4" text *
11 rows of 9.2" text *
10 rows of 10.1" text *
9 rows of 11.2" text *
8 rows of 12.6" text *
7 rows of 14.4" text *
6 rows of 16.8" text *
5 rows of 20.2" text *
4 rows of 25.2" text *
3 rows of 33.6" text *
2 rows of 50.4" text *
1 row of 100.8" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV

Pricing

We are committed to providing our dealers with the best products, tools and support in the industry.
Click "Find a Dealer" to inquire about purchasing a product for your own organization's use.
