LED Display Specifications | |
---|---|
Color: | Full Color |
Pixel Pitch: | 10mm (0.39") |
Matrix - pixel height: | 64 |
Matrix - pixel width: | 192 |
Sides: | Single Sided |
Controller: | Industrial PC |
Total pixels: | 12,288 |
Total LEDs: | 36,864 |
Brightness: | Up to 10,000 nits |
Horizontal/vertical viewing angle: | 140/70 |
Software: | SignCommand.com |
Frames per second: | 60 |
Auto or manual dimming: | Included |

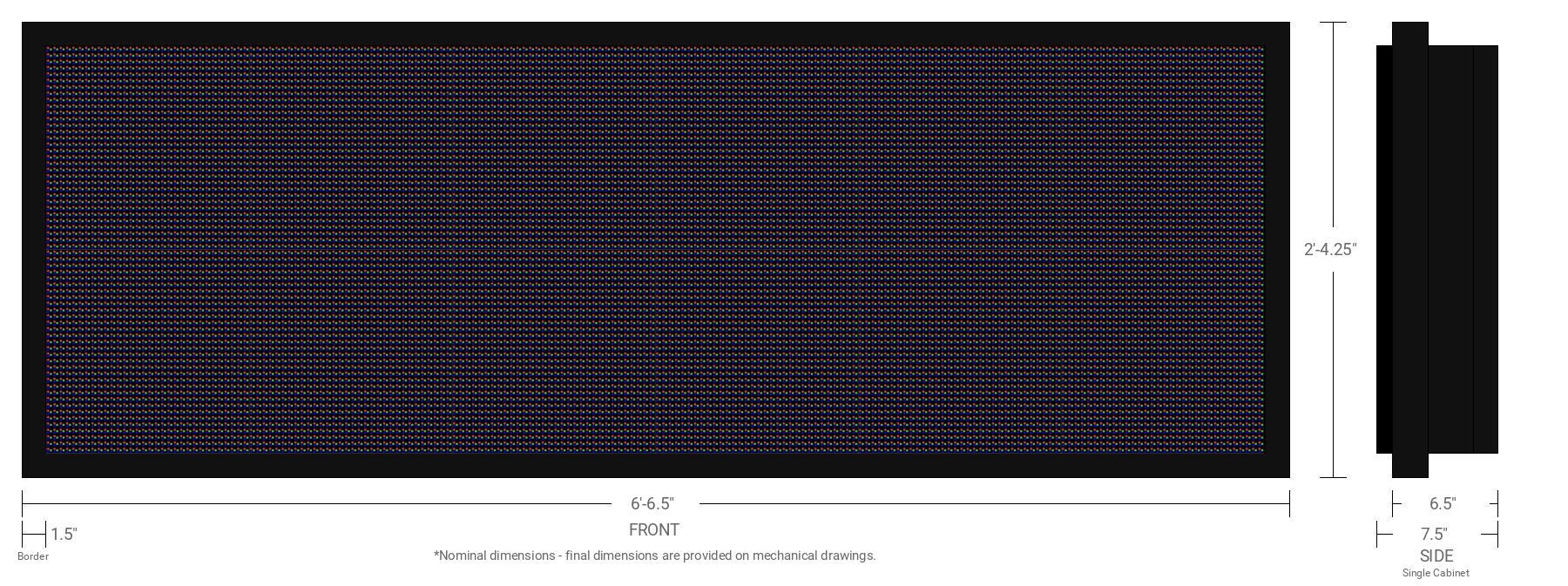

LED Display Dimensions | |
---|---|
Nominal dimensions - final dimensions are provided on mechanical drawings. | |
Active display height: | 2'-1.25" (25.25") |
Active display width: | 6'-3.5" (75.5") |
Active display sq.ft.: | 13.2 sq.ft. |
Matching Complete Sign |
---|
For applications with a combined LED display and identification area, we recommend the following complete sign. |
Complete Aurora 10mm 64x192 Single Sided Full Color LED Display with 2.5' x 7' ID Cabinet & Digital Print Pan Formed Face |
Matching Identification Cabinet |
---|
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
2.5' x 7' Single Sided Aluminum Sign Cabinet with 12" Extrusion |
Electrical Requirements (Estimated) | |
---|---|
Circuit: | 1 circuit at 20 amps |
Voltage: | 120 volts |
LED Display Electrical Use (Estimated) | |
---|---|
Typical use (daytime): | 225 watts |
Typical use (nighttime): | 45 watts |
Maximum use: | 451 watts |
Max draw: | 4 amps |
Operating cost is approximately $12 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh. |
LED Communication Methods |
---|
Cell Connect (optional) |
Wi-Fi via Radio Frequency Modems (optional) |
Ethernet Cable (standard) |
LED Module Specifications | |
---|---|
Pixel size: | 32 x 32 pixels |
Physical size: | 320mm x 320mm |
LEDs per pixel: | 1 red, 1 green, 1 blue |
Text Capabilities |
---|
8 rows of 2.8" text |
6 rows of 3.5" text |
5 rows of 3.9" text |
4 rows of 5.1" text |
3 rows of 8.4" text * |
2 rows of 12.6" text * |
1 row of 25.2" text * |
* Using regular text. |
Supported Formats |
---|
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
