Aurora 16mm 120x120 Double Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 16mm (0.63")
Matrix - pixel height: 120
Matrix - pixel width: 120
Sides: Double Sided
Controller: Industrial PC
Total pixels: 28,800
Total LEDs: 86,400
Brightness: Up to 10,000 nits
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included

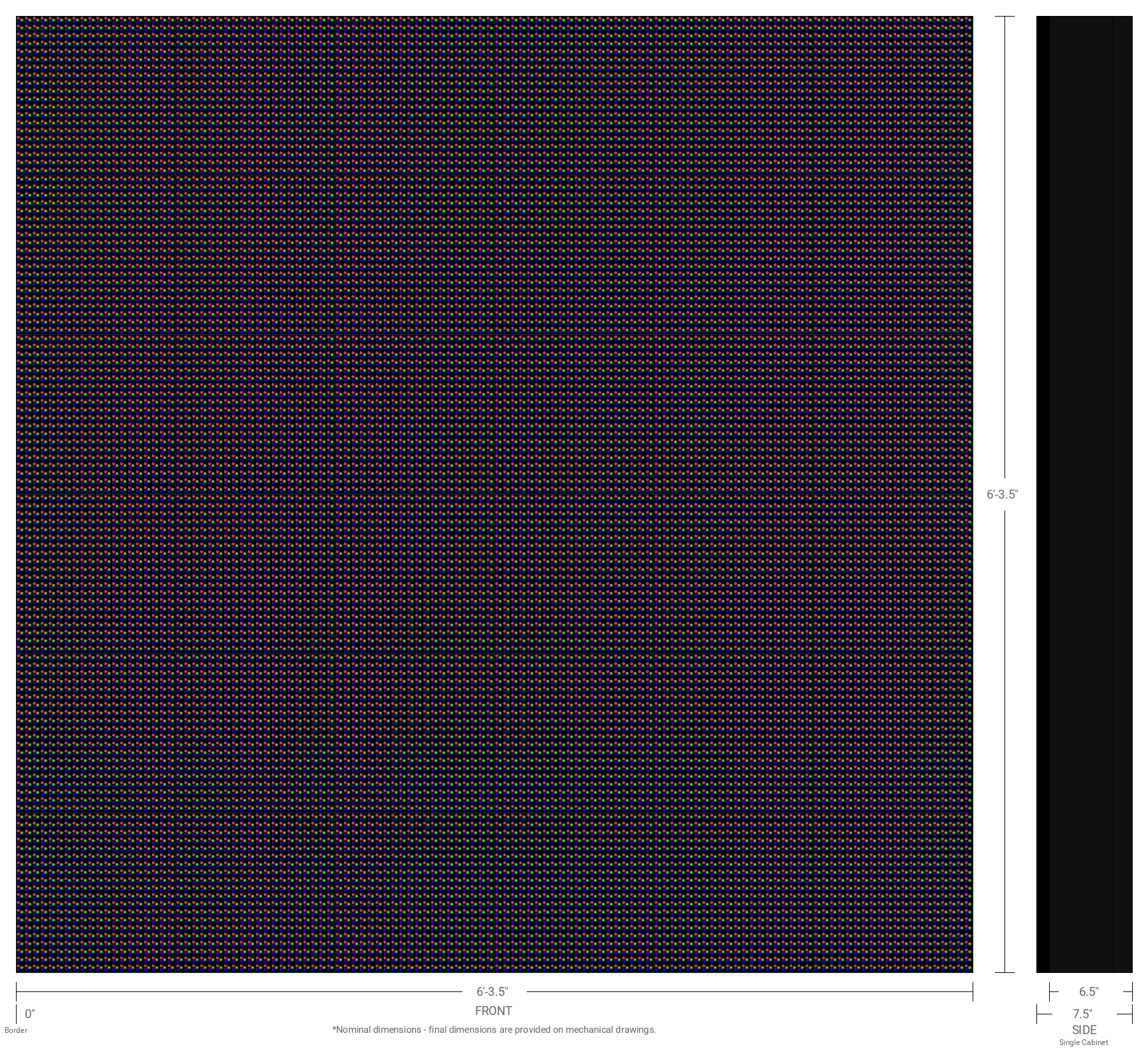

LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 6'-3.5" (75.5")
Active display width: 6'-3.5" (75.5")
Active display sq.ft.: 39.6 sq.ft. per side
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Aurora 16mm 120x120 Double Sided Full Color LED Display with 3' x 7' ID Cabinet & Digital Print Pan Formed Faces
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 7' Double Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements (Estimated)
Circuit: 1 circuit at 20 amps
Voltage: 240 volts
LED Display Electrical Use (Estimated)
Typical use (daytime): 671 watts per side
Typical use (nighttime): 134 watts per side
Maximum use: 1,343 watts per side
Max draw: 6 amps per side
Operating cost is approximately $35 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 20 x 20 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 red, 1 green, 1 blue
Text Capabilities
15 rows of 4.4" text
12 rows of 5.7" text
10 rows of 6.3" text
7 rows of 8.2" text
6 rows of 12.6" text *
5 rows of 15.1" text *
4 rows of 18.9" text *
3 rows of 25.2" text *
2 rows of 37.8" text *
1 row of 75.6" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV

Pricing

We are committed to providing our dealers with the best products, tools and support in the industry.
Click "Find a Dealer" to inquire about purchasing a product for your own organization's use.
