Aurora 20mm 112x128 Single Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 20mm (0.79")
Matrix - pixel height: 112
Matrix - pixel width: 128
Sides: Single Sided
Controller: Industrial PC
Total pixels: 14,336
Total LEDs: 43,008
Brightness: Up to 10,000 nits
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included

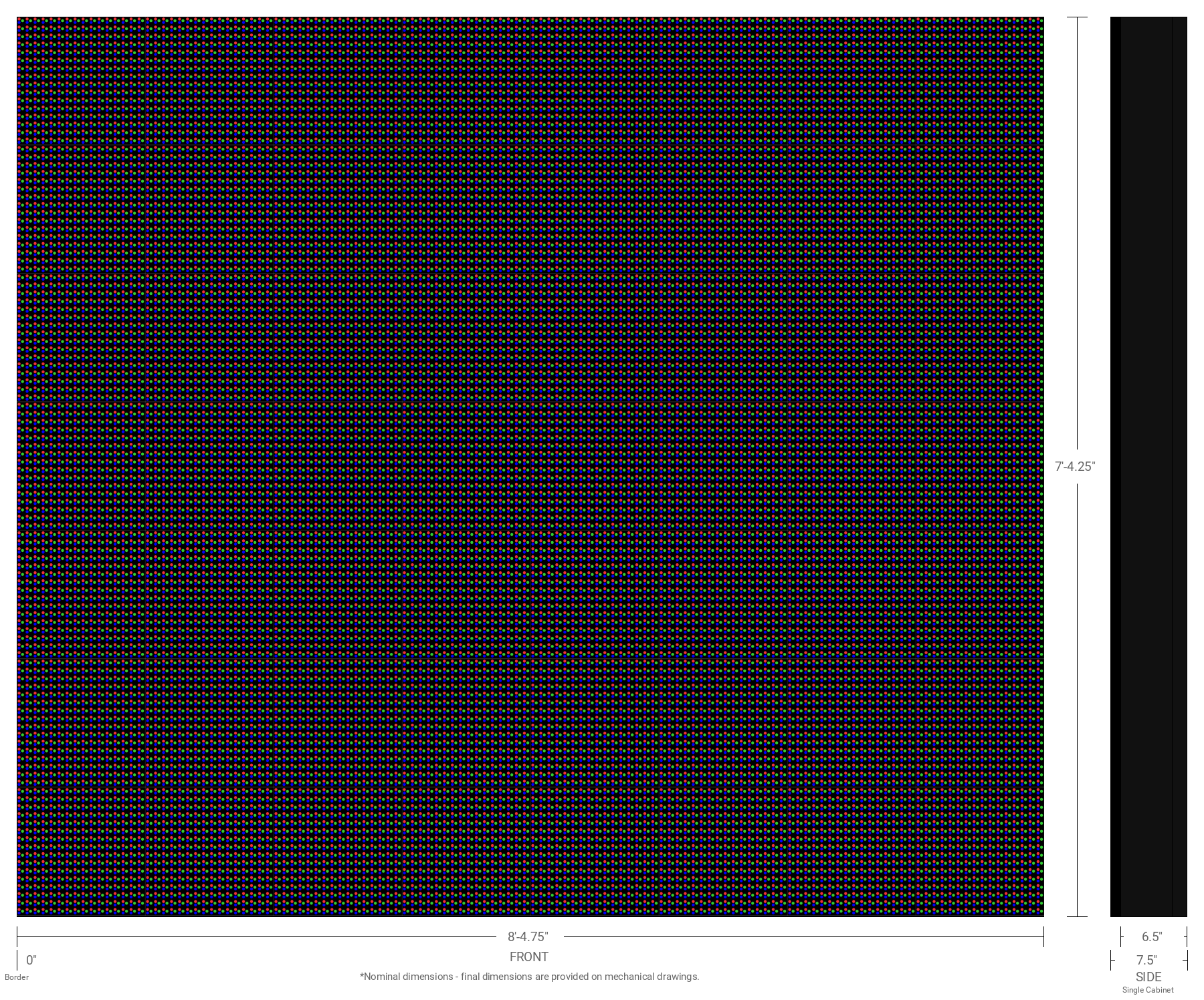

LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 7'-4.25" (88.25")
Active display width: 8'-4.75" (100.75")
Active display sq.ft.: 61.7 sq.ft.
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Aurora 20mm 112x128 Single Sided Full Color LED Display with 3' x 9' ID Cabinet & Digital Print Pan Formed Face
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 9' Single Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements (Estimated)
Circuit: 1 circuit at 20 amps
Voltage: 240 volts
LED Display Electrical Use (Estimated)
Typical use (daytime): 1,034 watts
Typical use (nighttime): 207 watts
Maximum use: 2,068 watts
Max draw: 9 amps
Operating cost is approximately $54 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 16 x 16 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 red, 1 green, 1 blue
Text Capabilities
14 rows of 5.5" text
11 rows of 7.1" text
10 rows of 7.9" text
7 rows of 10.2" text
6 rows of 14.7" text *
5 rows of 17.6" text *
4 rows of 22" text *
3 rows of 29.4" text *
2 rows of 44.1" text *
1 row of 88.2" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV
