Polaris 10mm 64x224 Double Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 10mm (0.39")
Matrix - pixel height: 64
Matrix - pixel width: 224
Sides: Double Sided
Controller: Industrial PC
Total pixels: 28,672
Total LEDs: 86,016
Brightness: Up to 10,000 nits
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included

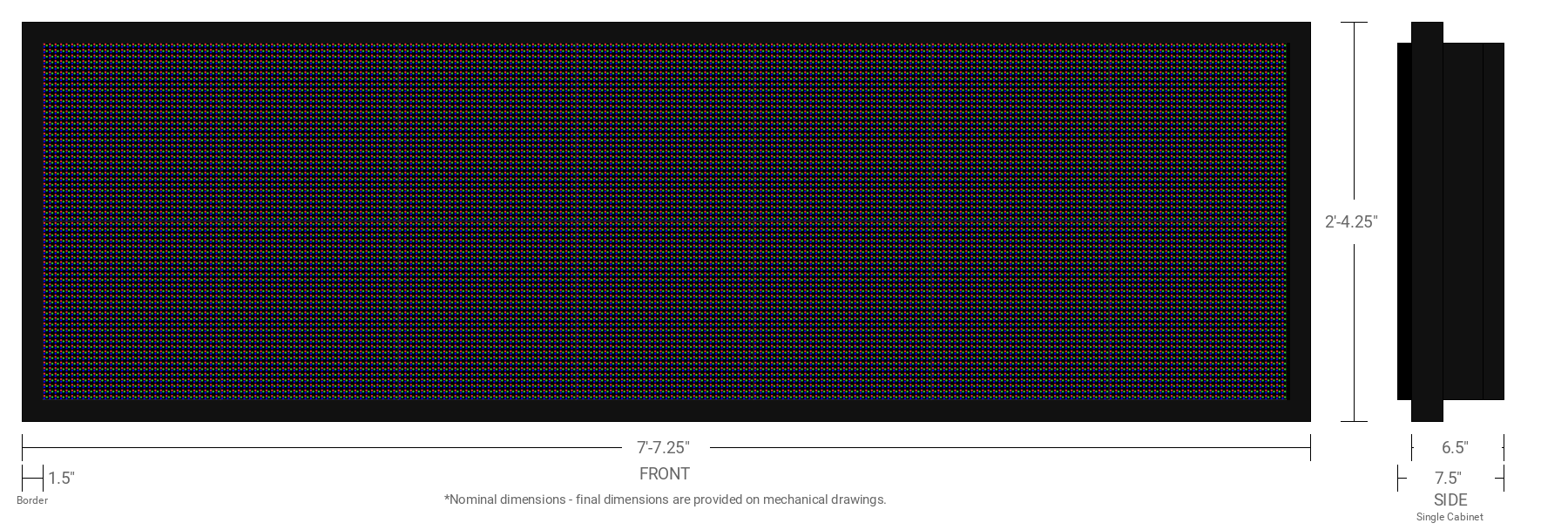

LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 2'-1.25" (25.25")
Active display width: 7'-4.25" (88.25")
Active display sq.ft.: 15.5 sq.ft. per side
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Polaris 10mm 64x224 Double Sided Full Color LED Display with 2.5' x 8' ID Cabinet & Digital Print Pan Formed Faces
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
2.5' x 8' Double Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements (Estimated)
Circuit: 1 circuit at 20 amps
Voltage: 120 volts
LED Display Electrical Use (Estimated)
Typical use (daytime): 271 watts per side
Typical use (nighttime): 54 watts per side
Maximum use: 543 watts per side
Max draw: 5 amps per side
Operating cost is approximately $14 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 32 x 32 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 red, 1 green, 1 blue
Text Capabilities
8 rows of 2.8" text
6 rows of 3.5" text
5 rows of 3.9" text
4 rows of 5.1" text
3 rows of 8.4" text *
2 rows of 12.6" text *
1 row of 25.2" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV
