Polaris 10mm 96x352 Single Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 10mm (0.39")
Matrix - pixel height: 96
Matrix - pixel width: 352
Sides: Single Sided
Controller: Industrial PC
Total pixels: 33,792
Total LEDs: 101,376
Brightness: > 10,000 nits
Number of colors: 281 quintillion
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included
LED Display Dimensions

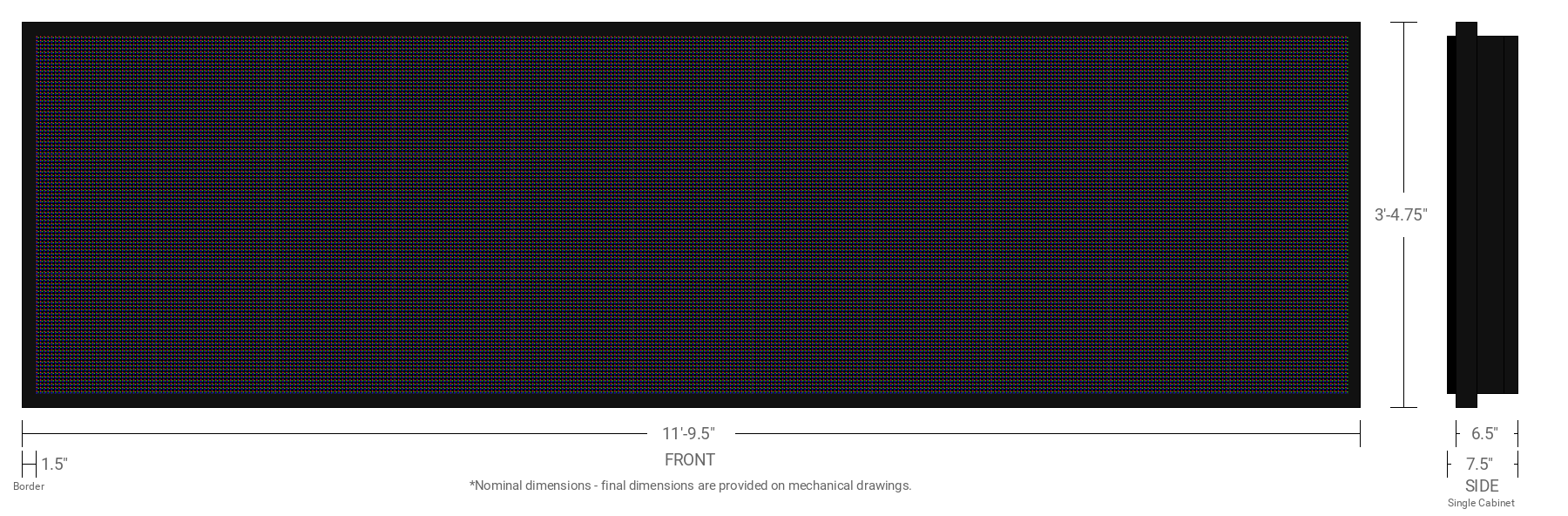

Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 3'-1.75" (37.75")
Active display width: 11'-6.5" (138.5")
Active display sq.ft.: 36.3 sq.ft.
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Polaris 10mm 96x352 Single Sided Full Color LED Display with 3' x 12' ID Cabinet & Digital Print Pan Formed Face
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 12' Single Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements
Circuit: 1 circuit at 20 amps
Voltage: 120 volts
LED Display Electrical Use
Typical use (daytime): 610 watts
Typical use (nighttime): 122 watts
Maximum use: 1,220 watts
Max draw: 10 amps
Operating cost is approximately $32 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 32 x 32 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 red, 1 green, 1 blue
Text Capabilities
12 rows of 2.8" text
9 rows of 3.5" text
8 rows of 3.9" text
6 rows of 5.1" text
5 rows of 7.6" text *
4 rows of 9.4" text *
3 rows of 12.6" text *
2 rows of 18.9" text *
1 row of 37.8" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV
