Polaris 20mm 56x112 Single Sided Grayscale Red LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Grayscale Red
Pixel Pitch: 20mm (0.79")
Matrix - pixel height: 56
Matrix - pixel width: 112
Sides: Single Sided
Controller: Industrial PC
Total pixels: 6,272
Total LEDs: 12,544
Brightness: Up to 10,000 nits
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 30
Auto or manual dimming: Included

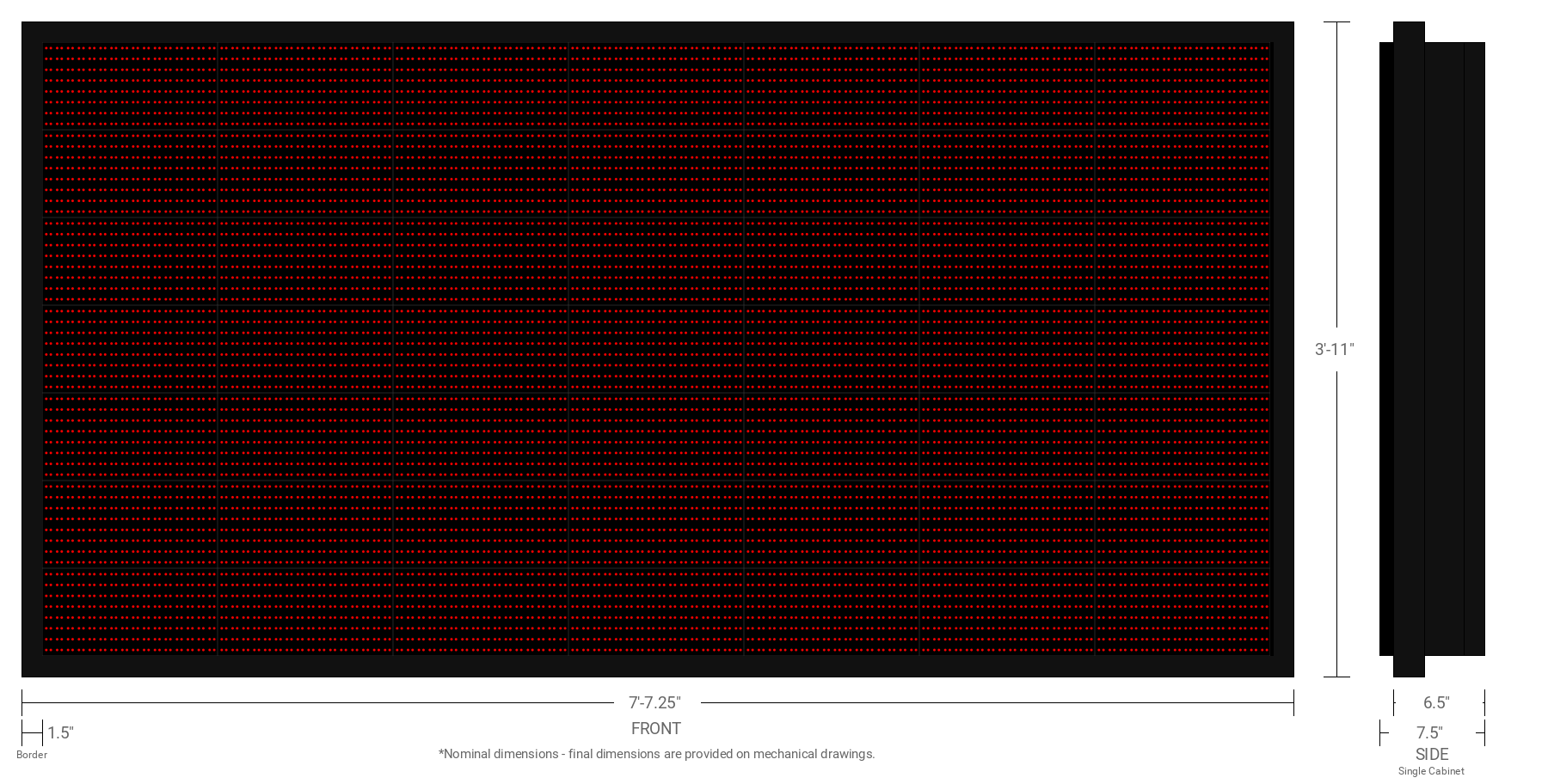

LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 3'-8" (44")
Active display width: 7'-4.25" (88.25")
Active display sq.ft.: 27 sq.ft.
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Polaris 20mm 56x112 Single Sided Grayscale Red LED Display with 3' x 8' ID Cabinet & Digital Print Pan Formed Face
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 8' Single Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements (Estimated)
Circuit: 1 circuit at 20 amps
Voltage: 120 volts
LED Display Electrical Use (Estimated)
Typical use (daytime): 284 watts
Typical use (nighttime): 57 watts
Maximum use: 569 watts
Max draw: 5 amps
Operating cost is approximately $15 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 8 x 16 pixels
Physical size: 160mm x 320mm
LEDs per pixel: 2 red per pixel
Text Capabilities
7 rows of 5.5" text
5 rows of 7.1" text
5 rows of 7.9" text
3 rows of 10.2" text
2 rows of 22" text *
1 row of 44.1" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV
