Polaris 20mm 56x96 Double Sided Full Color LED Display
View this model as a
complete sign.
| LED Display Specifications | |
|---|---|
| Color: | Full Color |
| Pixel Pitch: | 20mm (0.79") |
| Matrix - pixel height: | 56 |
| Matrix - pixel width: | 96 |
| Sides: | Double Sided |
| Controller: | Industrial PC |
| Total pixels: | 10,752 |
| Total LEDs: | 32,256 |
| Brightness: | Up to 10,000 nits |
| Horizontal/vertical viewing angle: | 140/70 |
| Software: | SignCommand.com |
| Frames per second: | 60 |
| Auto or manual dimming: | Included |
| LED Display Dimensions | |
|---|---|

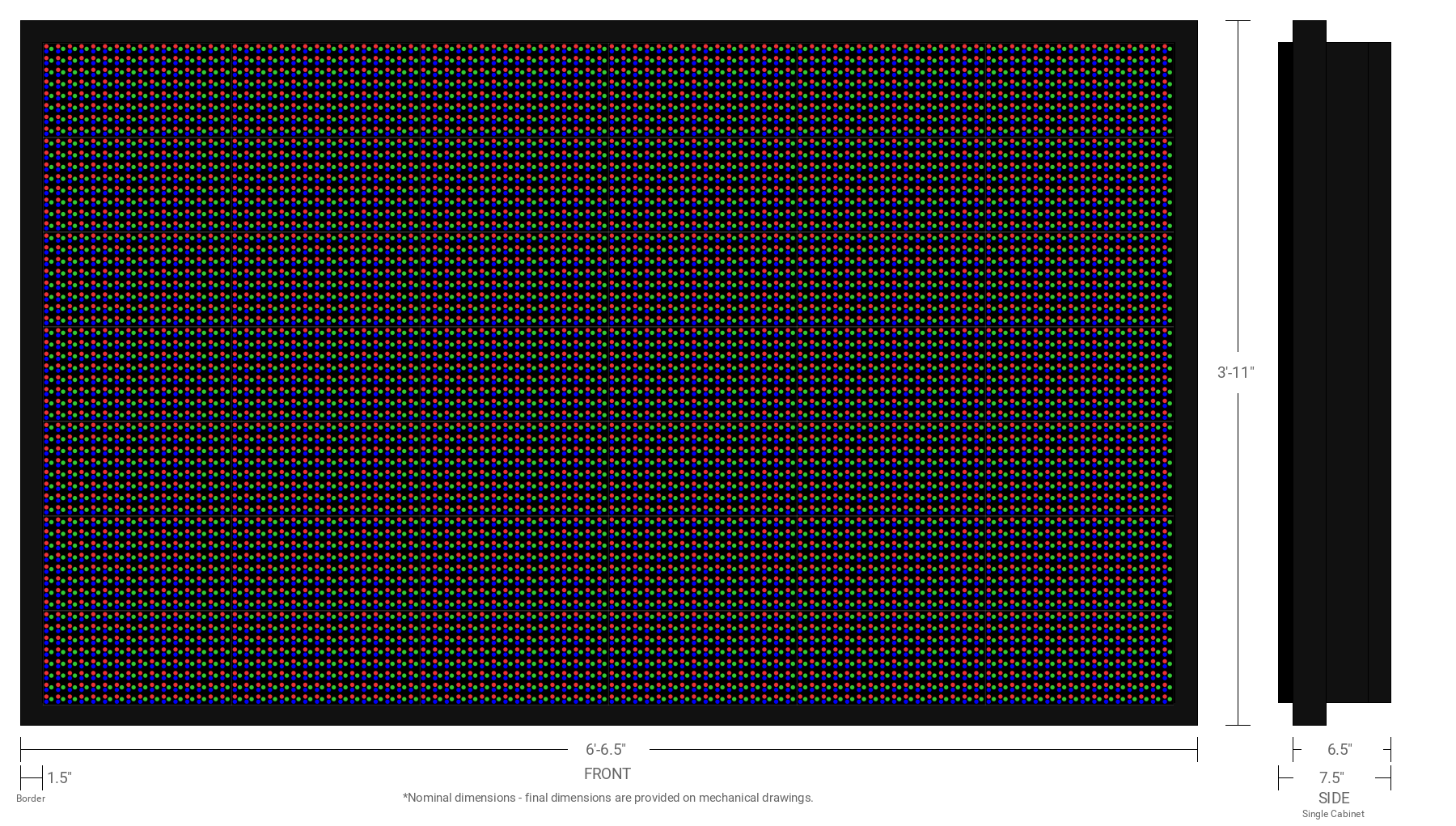

| Nominal dimensions - final dimensions are provided on mechanical drawings. | |
| Active display height: | 3'-8" (44") |
| Active display width: | 6'-3.5" (75.5") |
| Active display sq.ft.: | 23.1 sq.ft. per side |
| Matching Complete Sign |
|---|
| For applications with a combined LED display and identification area, we recommend the following complete sign. |
| Complete Polaris 20mm 56x96 Double Sided Full Color LED Display with 3' x 7' ID Cabinet & Digital Print Pan Formed Faces |
| Matching Identification Cabinet |
|---|
| For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
| 3' x 7' Double Sided Aluminum Sign Cabinet with 12" Extrusion |
| Electrical Requirements (Estimated) | |
|---|---|
| Circuit: | 1 circuit at 20 amps |
| Voltage: | 120 volts |
| LED Display Electrical Use (Estimated) | |
|---|---|
| Typical use (daytime): | 418 watts per side |
| Typical use (nighttime): | 84 watts per side |
| Maximum use: | 836 watts per side |
| Max draw: | 7 amps per side |
| Operating cost is approximately $22 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh. | |
| LED Communication Methods |
|---|
| Cell Connect (optional) |
| Wi-Fi via Radio Frequency Modems (optional) |
| Ethernet Cable (standard) |
| LED Module Specifications | |
|---|---|
| Pixel size: | 8 x 16 pixels |
| Physical size: | 160mm x 320mm |
| LEDs per pixel: | 1 red, 1 green, 1 blue |
| Text Capabilities |
|---|
| 7 rows of 5.5" text |
| 5 rows of 7.1" text |
| 5 rows of 7.9" text |
| 3 rows of 10.2" text |
| 2 rows of 22" text * |
| 1 row of 44.1" text * |
| * Using regular text. |
| Supported Formats |
|---|
| AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
