LED Display Specifications | |
---|---|
Color: | Grayscale Red |
Pixel Pitch: | 20mm (0.79") |
Matrix - pixel height: | 64 |
Matrix - pixel width: | 128 |
Sides: | Single Sided |
Controller: | Industrial PC |
Total pixels: | 8,192 |
Total LEDs: | 16,384 |
Brightness: | Up to 10,000 nits |
Horizontal/vertical viewing angle: | 140/70 |
Software: | SignCommand.com |
Frames per second: | 30 |
Auto or manual dimming: | Included |
LED Display Dimensions | |
---|---|

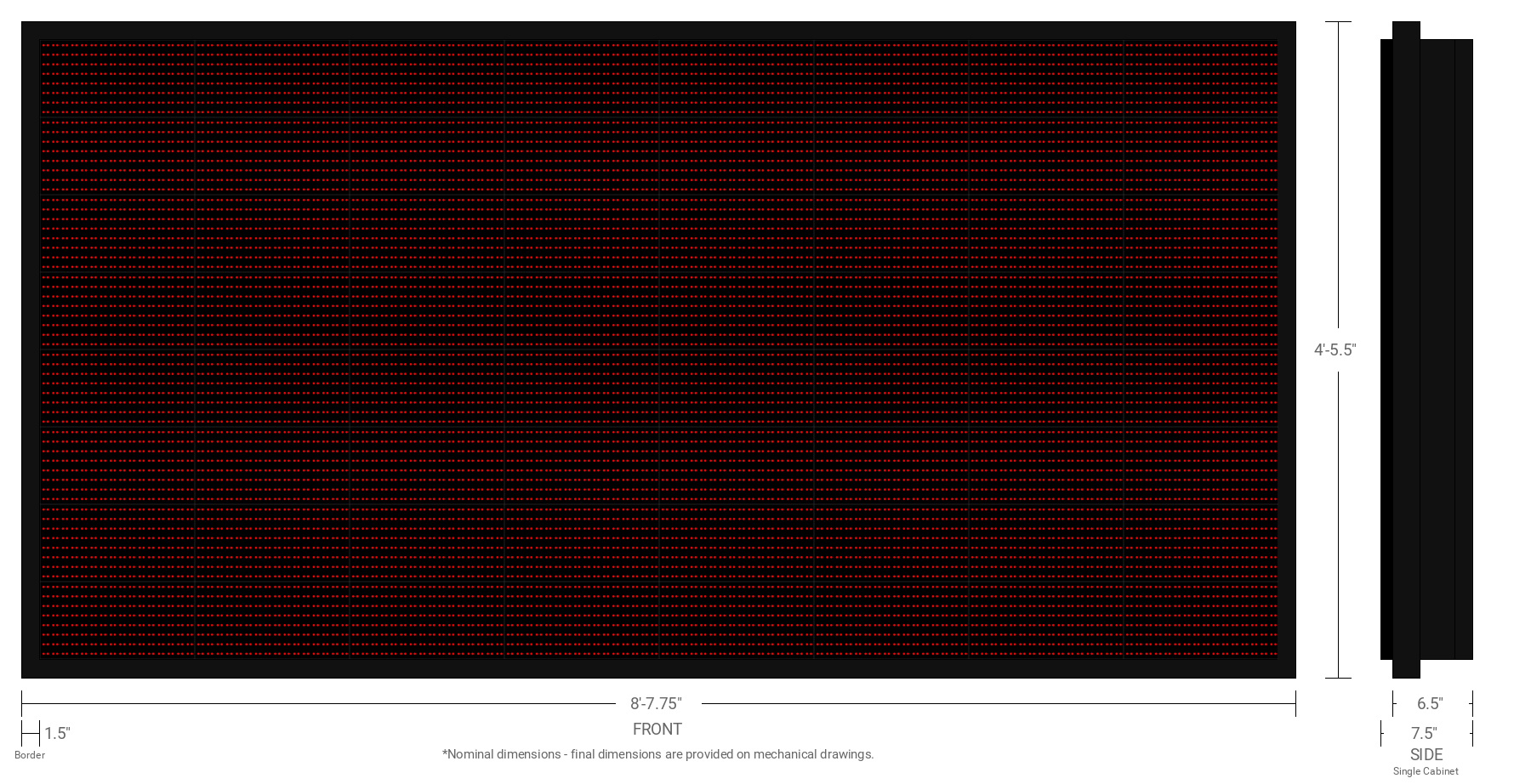

Nominal dimensions - final dimensions are provided on mechanical drawings. | |
Active display height: | 4'-2.5" (50.5") |
Active display width: | 8'-4.75" (100.75") |
Active display sq.ft.: | 35.3 sq.ft. |
Matching Complete Sign |
---|
For applications with a combined LED display and identification area, we recommend the following complete sign. |
Complete Polaris 20mm 64x128 Single Sided Grayscale Red LED Display with 3' x 9' ID Cabinet & Digital Print Pan Formed Face |
Matching Identification Cabinet |
---|
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
3' x 9' Single Sided Aluminum Sign Cabinet with 12" Extrusion |
Electrical Requirements (Estimated) | |
---|---|
Circuit: | 1 circuit at 20 amps |
Voltage: | 120 volts |
LED Display Electrical Use (Estimated) | |
---|---|
Typical use (daytime): | 355 watts |
Typical use (nighttime): | 71 watts |
Maximum use: | 711 watts |
Max draw: | 6 amps |
Operating cost is approximately $19 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh. |
LED Communication Methods |
---|
Cell Connect (optional) |
Wi-Fi via Radio Frequency Modems (optional) |
Ethernet Cable (standard) |
LED Module Specifications | |
---|---|
Pixel size: | 8 x 16 pixels |
Physical size: | 160mm x 320mm |
LEDs per pixel: | 2 red per pixel |
Text Capabilities |
---|
8 rows of 5.5" text |
6 rows of 7.1" text |
5 rows of 7.9" text |
4 rows of 10.2" text |
3 rows of 16.8" text * |
2 rows of 25.2" text * |
1 row of 50.4" text * |
* Using regular text. |
Supported Formats |
---|
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
