Polaris 8mm 120x240 Single Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 8mm (0.31")
Matrix - pixel height: 120
Matrix - pixel width: 240
Sides: Single Sided
Controller: Industrial PC
Total pixels: 28,800
Total LEDs: 28,800
Brightness: > 7,200 nits
Number of colors: 281 quintillion
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included
LED Display Dimensions

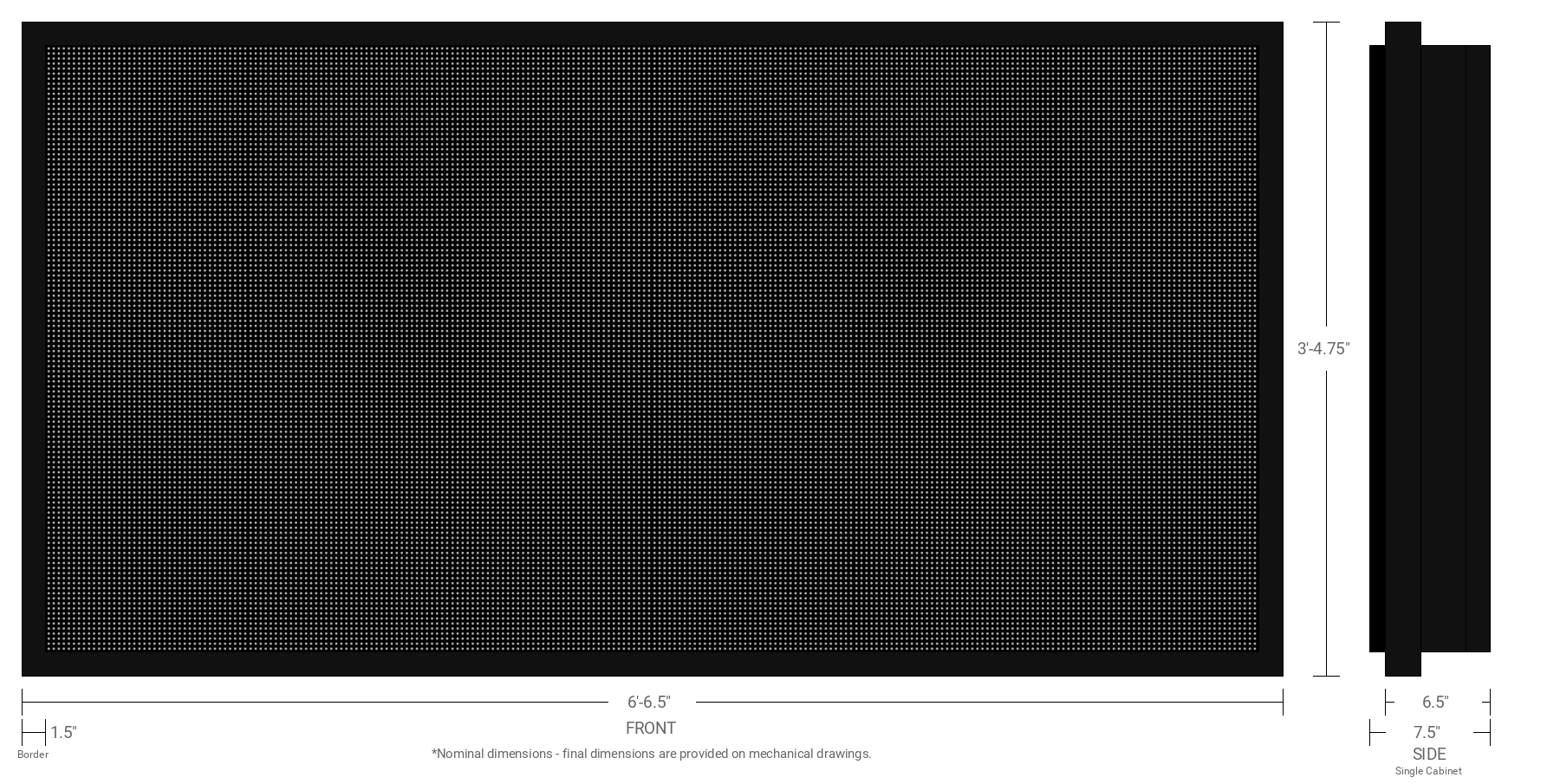

Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 3'-1.75" (37.75")
Active display width: 6'-3.5" (75.5")
Active display sq.ft.: 19.8 sq.ft.
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Polaris 8mm 120x240 Single Sided Full Color LED Display with 3' x 8' ID Cabinet & Digital Print Pan Formed Face
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 8' Single Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements (Estimated)
Circuit: 1 circuit at 20 amps
Voltage: 120 volts
LED Display Electrical Use (Estimated)
Typical use (daytime): 513 watts
Typical use (nighttime): 103 watts
Maximum use: 1,026 watts
Max draw: 9 amps
Operating cost is approximately $27 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 40 x 40 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 SMD
Text Capabilities
15 rows of 2.2" text
12 rows of 2.8" text
10 rows of 3.1" text
7 rows of 4.1" text
6 rows of 6.3" text *
5 rows of 7.6" text *
4 rows of 9.4" text *
3 rows of 12.6" text *
2 rows of 18.9" text *
1 row of 37.8" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV

Pricing

We are committed to providing our dealers with the best products, tools and support in the industry.
Click "Find a Dealer" to inquire about purchasing a product for your own organization's use.
