Polaris 8mm 160x120 Double Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 8mm (0.31")
Matrix - pixel height: 160
Matrix - pixel width: 120
Sides: Double Sided
Controller: Industrial PC
Total pixels: 38,400
Total LEDs: 38,400
Brightness: Up to 10,000 nits
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included

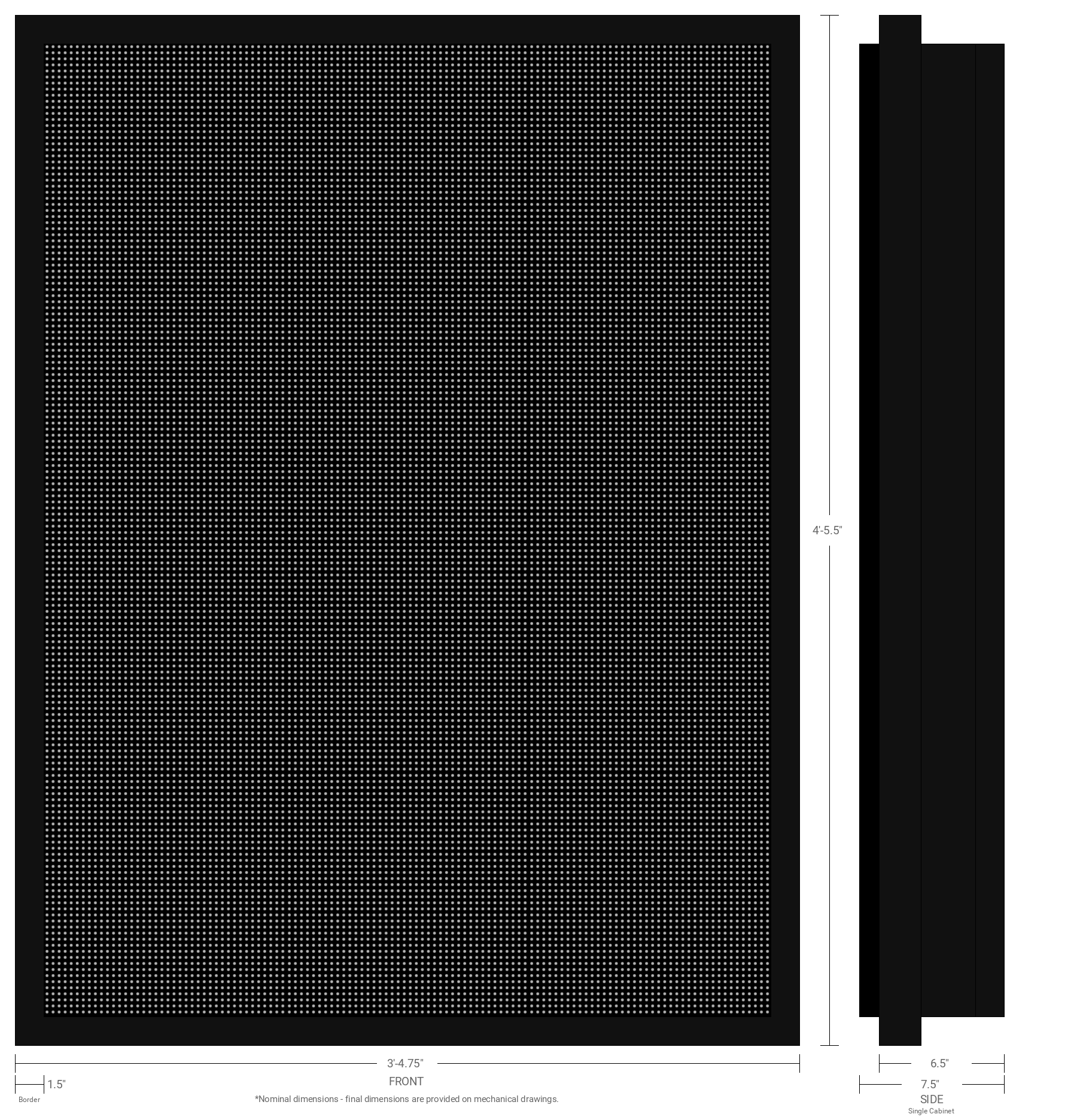

LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 4'-2.5" (50.5")
Active display width: 3'-1.75" (37.75")
Active display sq.ft.: 13.2 sq.ft. per side
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Polaris 8mm 160x120 Double Sided Full Color LED Display with 3' x 4' ID Cabinet & Digital Print Pan Formed Faces
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 4' Double Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements (Estimated)
Circuit: 1 circuit at 20 amps
Voltage: 120 volts
LED Display Electrical Use (Estimated)
Typical use (daytime): 359 watts per side
Typical use (nighttime): 72 watts per side
Maximum use: 719 watts per side
Max draw: 6 amps per side
Operating cost is approximately $19 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 40 x 40 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 SMD
Text Capabilities
20 rows of 2.2" text
16 rows of 2.8" text
14 rows of 3.1" text
10 rows of 4.1" text
9 rows of 5.6" text *
8 rows of 6.3" text *
7 rows of 7.2" text *
6 rows of 8.4" text *
5 rows of 10.1" text *
4 rows of 12.6" text *
3 rows of 16.8" text *
2 rows of 25.2" text *
1 row of 50.4" text *
* Using regular text.
Supported Formats
