Polaris 8mm 160x400 Double Sided Full Color LED Display

Product Endorsements
View this model as a complete sign.
LED Display Specifications
Color: Full Color
Pixel Pitch: 8mm (0.31")
Matrix - pixel height: 160
Matrix - pixel width: 400
Sides: Double Sided
Controller: Industrial PC
Total pixels: 128,000
Total LEDs: 128,000
Brightness: Up to 10,000 nits
Horizontal/vertical viewing angle: 140/70
Software: SignCommand.com
Frames per second: 60
Auto or manual dimming: Included

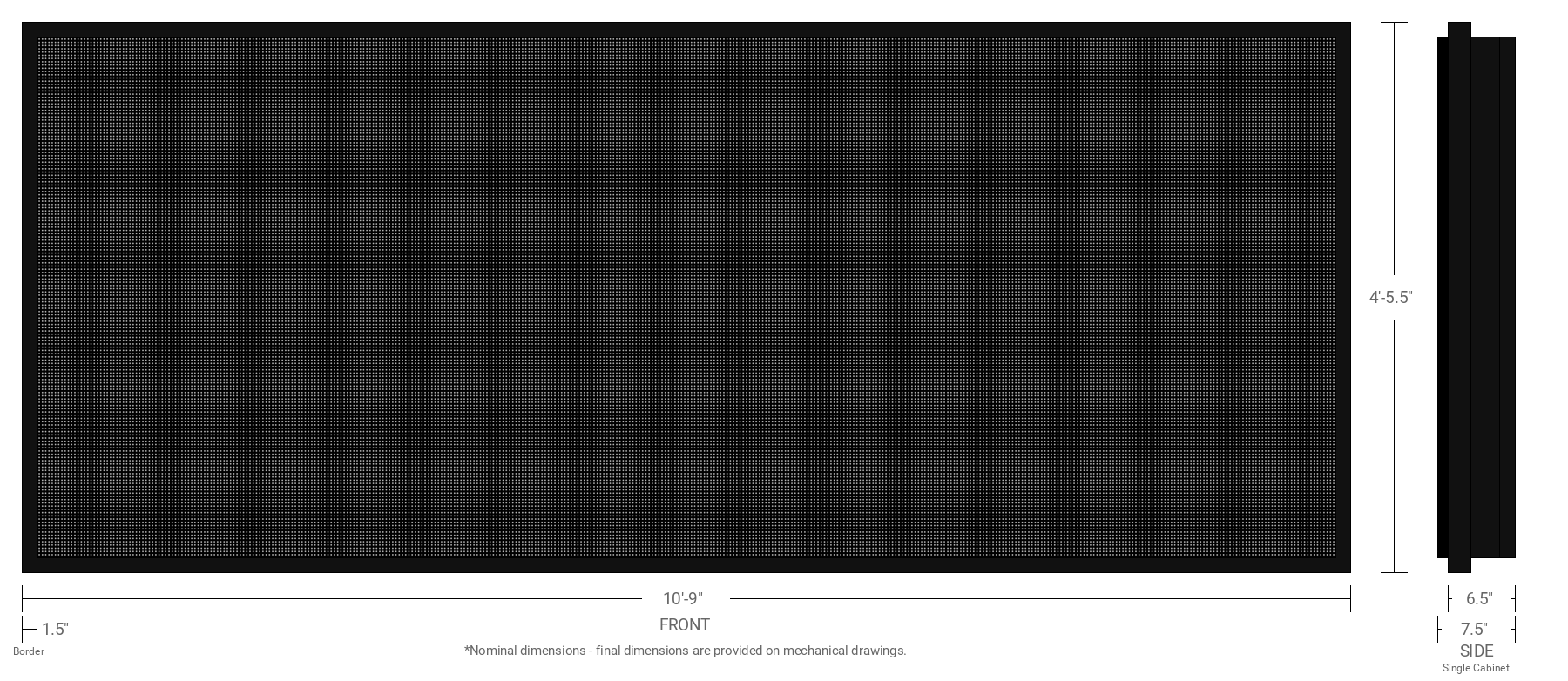

LED Display Dimensions
Nominal dimensions - final dimensions are provided on mechanical drawings.
Active display height: 4'-2.5" (50.5")
Active display width: 10'-6" (126")
Active display sq.ft.: 44.2 sq.ft. per side
Matching Complete Sign
For applications with a combined LED display and identification area, we recommend the following complete sign.
Complete Polaris 8mm 160x400 Double Sided Full Color LED Display with 3' x 11' ID Cabinet & Digital Print Pan Formed Faces
Matching Identification Cabinet
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet.
3' x 11' Double Sided Aluminum Sign Cabinet with 12" Extrusion
Electrical Requirements (Estimated)
Circuit: 2 circuits at 20 amps
Voltage: 240 volts
LED Display Electrical Use (Estimated)
Typical use (daytime): 1,076 watts per side
Typical use (nighttime): 215 watts per side
Maximum use: 2,152 watts per side
Max draw: 9 amps per side
Operating cost is approximately $57 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh.
LED Communication Methods
Cell Connect (optional)
Wi-Fi via Radio Frequency Modems (optional)
Ethernet Cable (standard)
LED Module Specifications
Pixel size: 40 x 40 pixels
Physical size: 320mm x 320mm
LEDs per pixel: 1 SMD
Text Capabilities
20 rows of 2.2" text
16 rows of 2.8" text
14 rows of 3.1" text
10 rows of 4.1" text
9 rows of 5.6" text *
8 rows of 6.3" text *
7 rows of 7.2" text *
6 rows of 8.4" text *
5 rows of 10.1" text *
4 rows of 12.6" text *
3 rows of 16.8" text *
2 rows of 25.2" text *
1 row of 50.4" text *
* Using regular text.
Supported Formats
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV

Pricing

We are committed to providing our dealers with the best products, tools and support in the industry.
Click "Find a Dealer" to inquire about purchasing a product for your own organization's use.
