LED Display Specifications | |
---|---|
Color: | Full Color |
Pixel Pitch: | 8mm (0.31") |
Matrix - pixel height: | 40 |
Matrix - pixel width: | 240 |
Sides: | Double Sided |
Controller: | Industrial PC |
Total pixels: | 19,200 |
Total LEDs: | 19,200 |
Brightness: | Up to 10,000 nits |
Horizontal/vertical viewing angle: | 140/70 |
Software: | SignCommand.com |
Frames per second: | 60 |
Auto or manual dimming: | Included |
LED Display Dimensions | |
---|---|

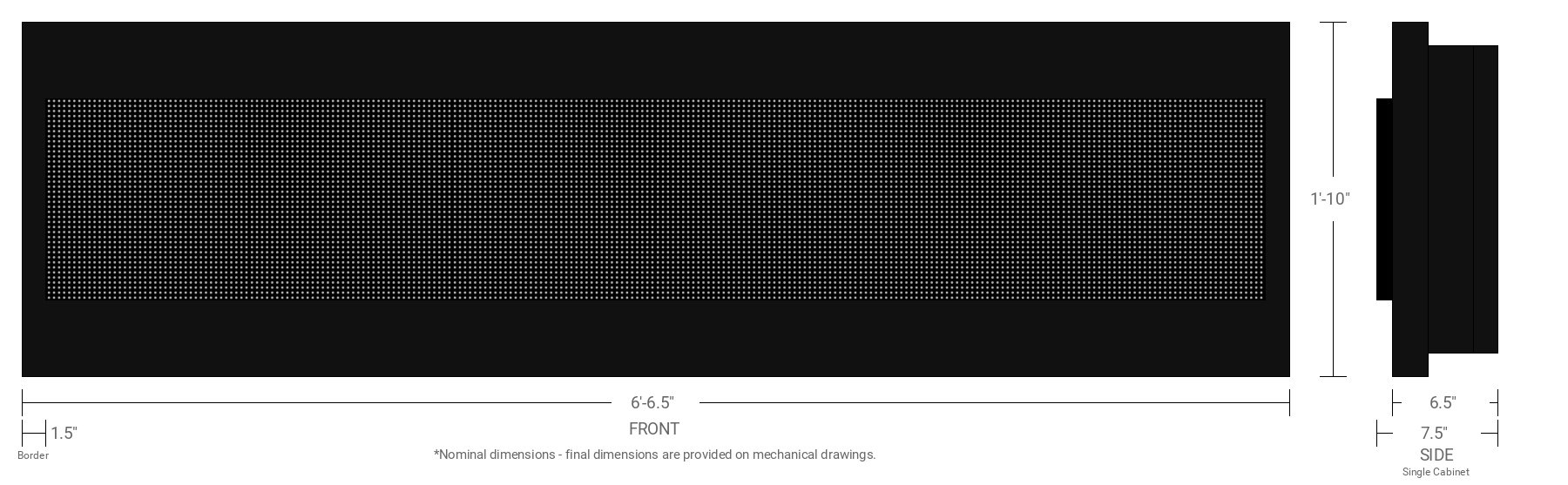

Nominal dimensions - final dimensions are provided on mechanical drawings. | |
Active display height: | 1'-0.5" (12.5") |
Active display width: | 6'-3.5" (75.5") |
Active display sq.ft.: | 6.6 sq.ft. per side |
Matching Complete Sign |
---|
For applications with a combined LED display and identification area, we recommend the following complete sign. |
Complete Polaris 8mm 40x240 Double Sided Full Color LED Display with 2' x 7' ID Cabinet & Digital Print Pan Formed Faces |
Matching Identification Cabinet |
---|
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
2' x 7' Double Sided Aluminum Sign Cabinet with 12" Extrusion |
Electrical Requirements (Estimated) | |
---|---|
Circuit: | 1 circuit at 20 amps |
Voltage: | 120 volts |
LED Display Electrical Use (Estimated) | |
---|---|
Typical use (daytime): | 171 watts per side |
Typical use (nighttime): | 34 watts per side |
Maximum use: | 342 watts per side |
Max draw: | 3 amps per side |
Operating cost is approximately $9 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh. |
LED Communication Methods |
---|
Cell Connect (optional) |
Wi-Fi via Radio Frequency Modems (optional) |
Ethernet Cable (standard) |
LED Module Specifications | |
---|---|
Pixel size: | 40 x 40 pixels |
Physical size: | 320mm x 320mm |
LEDs per pixel: | 1 SMD |
Text Capabilities |
---|
5 rows of 2.2" text |
4 rows of 2.8" text |
3 rows of 3.1" text |
2 rows of 4.1" text |
1 row of 12.6" text * |
* Using regular text. |
Supported Formats |
---|
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
